The 0.7–6.1 GHz frequency range spans the UHF, L, S, and C bands, serving as a critical frequency spectrum for electronic warfare, radar countermeasures, drone signal suppression, and EMC testing systems. Traditional approaches to covering this range often require combining multiple narrowband power amplifiers, resulting in complex system architectures, high costs, and reliability challenges.

Coreal has officially launched the C0761H50 ultra-wideband solid-state power amplifier module. This single module delivers continuous coverage from 700 to 6100 MHz, providing a versatile, "all-in-one" ultra-wideband power amplification solution for electronic countermeasures and test & measurement applications.

Key Specifications

Key Advantages

1. Ultra-Wideband Continuous Coverage

The C0761H50 provides continuous coverage across the 700–6100 MHz range, with an instantaneous bandwidth spanning from UHF to the C-band. This capability allows a single module to handle signals across multiple frequency bands, eliminating the need for separate amplifiers for each band. This significantly simplifies system architecture and reduces overall costs while eliminating response latency and frequency blind spots associated with switching between multiple devices.

2. High Power Output

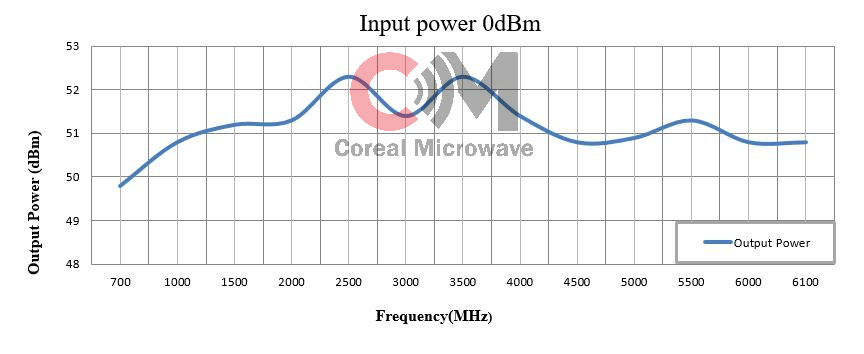

With 100W of output power and 50dB of high gain, the module effectively suppresses hostile radar, communication, and drone signals, making it ideal for electronic countermeasure scenarios that demand high power performance.

 3. Compact and lightweight design

With its ultra-slim 180×100×25 mm form factor and low-voltage power supply design, the C0761H50 offers a significant size advantage over comparable ultra-wideband power amplifiers. It integrates easily into UAV-mounted, vehicle-mounted, and portable systems, providing greater design flexibility for the host platform.

4. GaN solid-state technology

Based on GaN solid-state power amplifier technology, the C0761H50 offers key advantages over traditional Traveling Wave Tubes (TWTs)—such as instant-on capability (no warm-up required), low-voltage operation, long service life, and low maintenance costs—thereby meeting the "instant readiness" tactical requirements of electronic warfare systems.

Typical Application Scenarios

•  Electronic warfare and radar countermeasures
•  Jamming
• EMC radiated immunity testing
•  Broadband communication systems

The C0761H50 is backed by ISO 9001 and CE certifications, as well as a 36-month warranty (including the first 18 months free of charge). Please visit our Product Center to view detailed technical specifications for the C0761H50, or contact us directly for selection advice and technical support.
